Lift And Tire Size Guide

Introduction

Choosing the right lift height and tire size for a Ford Bronco II can be confusing, especially when real-world fitment often depends on more than just suspension height. Fender trimming, body lifts, wheel backspacing, suspension design, and even axle swaps all play a role in what tire sizes will actually fit and function.

This Ford Bronco II lift and tire size comparison guide provides real-world photo examples of Broncos running everything from stock suspension to solid axle swaps, with tire sizes ranging from factory dimensions up to 37-inch tires. Each example lists the suspension lift, body lift (if equipped), and tire size to give you a clear visual reference of what different setups look like in practice.

Whether you are planning a mild daily-driver build, a trail-ready weekend rig, or a fully built off-road Bronco II, this page is designed to help you compare lift heights and tire sizes side by side so you can make informed decisions before cutting fenders or ordering parts.

Note: The stock Ford Bronco II tire size is 205/75R15 (approximately 27.1 inches tall). Larger tires shown below may require suspension lifts, body lifts, fender trimming, aftermarket flares, or drivetrain modifications depending on the setup.

General Guideline

For years this has been the general guideline that people have followed when deciding how much lift is needed for a tire to fit, or what size tire they can fit with the lift they have. The examples that follow below this chart are probably a better representation.

Bronco II	Tire Size
Lift Height	30″ Tires	31″ Tires	32″ Tires	33″ Tires	35″ Tires
2-Inches	Fender Trimming	3″ Body Lift	3″ Body Lift Fender Trimming	N/A	N/A
4-Inches	Yes	Yes	Fender Trimming	3″ Body Lift	3″ Body Lift Fender Trimming
6-Inches	Yes	Yes	Yes	Yes	3″ Body Lift

28-30-Inch Tires

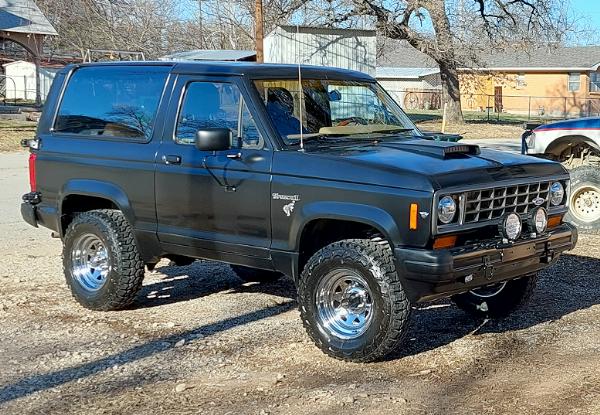

1.5-Inch Front Coil Springs, 1.5-inch Rear Add-a-Leaf, 235/75/15 (28.9″ x 9.3″ x 15″) Tires

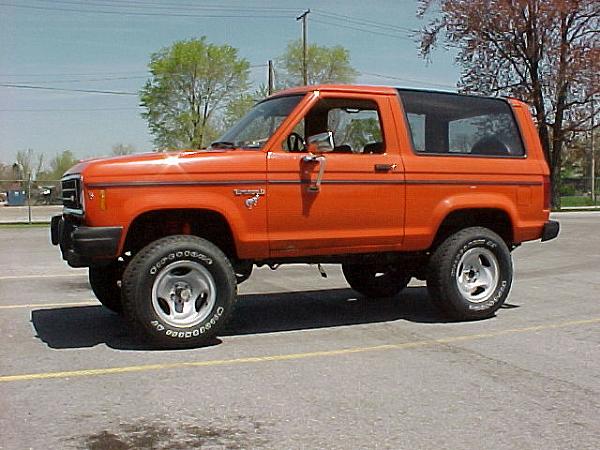

4-Inch Skyjacker Suspension Lift With 245/75/16 (30.47″ x 9.65″ x 16″) Tires

31-Inch Tires

31×10.5R15 Tires With No Lift and Trimmed Fenders

 2-Inch Lift With 31×10.5×15 Tires

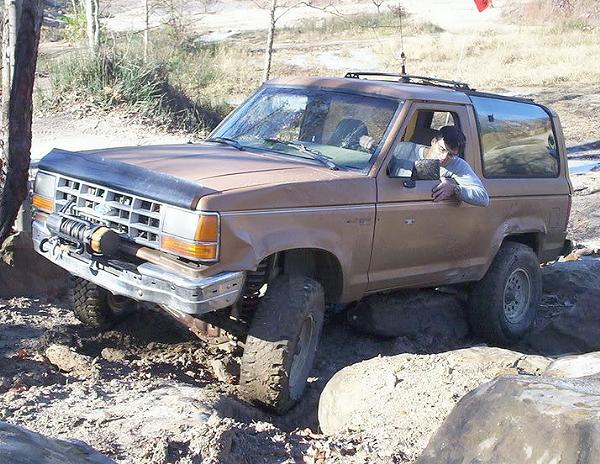

James Duff 3-Inch Lift & 31×10.50×15 Tires

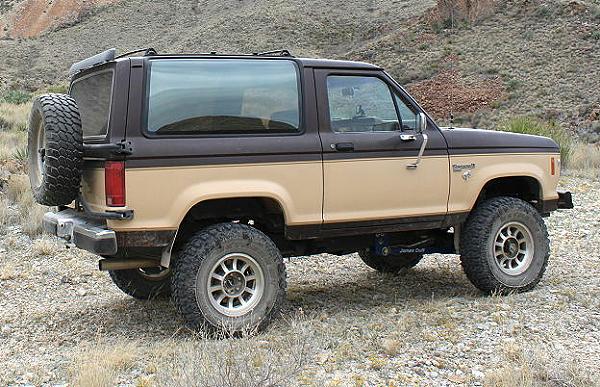

3-Inch Suspension Lift, 2-Inch Body Lift, and 31-Inch Tires

4-Inch Suspension Lift and 31-Inch Tires

4-Inch Suspension Lift and 31-Inch Tires

32-Inch Tires

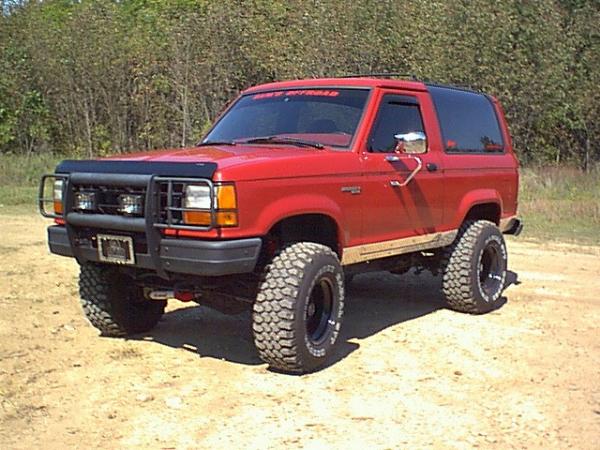

1.5-inch Lift with 32×11.5×15 Tires and Bottom Rear Corner of The Front Fender Trimmed

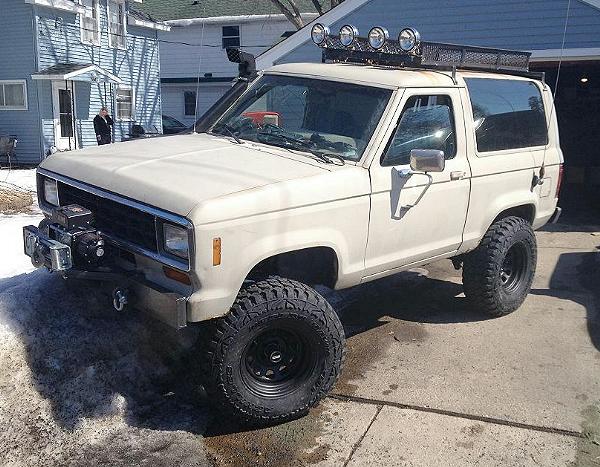

4-Inch Suspension Lift With 32×11.50Rx15 Tires

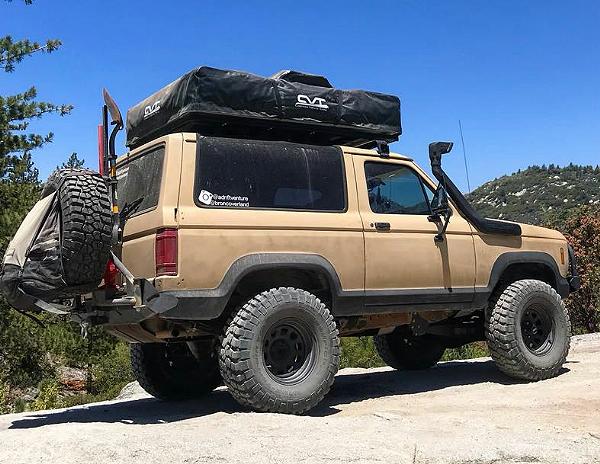

4-Inch Skyjacker Suspension Lift with 32-Inch Tires

33-Inch Tires

4-Inch Skyjacker Suspension Lift With 33×12.50×15 Tires

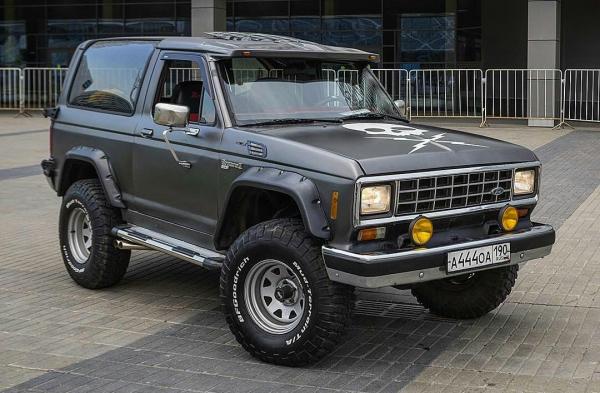

3-Inch Body Lift, Cutout Fender Flares, and 33-Inch Tires

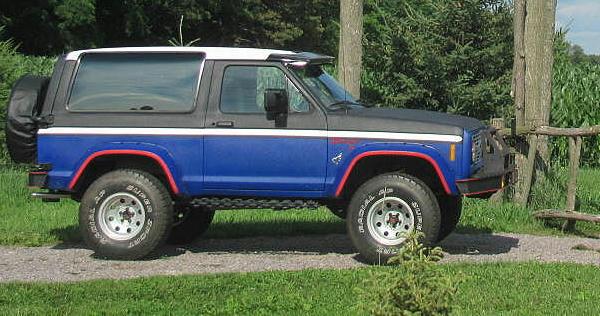

4-Inch Suspension Lift, Bushwacker Cut Out Fender Flares, 33-Inch Tires

Solid Axle Swap, 6-Inch Suspension Lift, Trimmed Fenders, 33-Inch Tires

4-Inch Suspension Lift, 2-Inch Body Lift, and 33×12.50×15 Tires

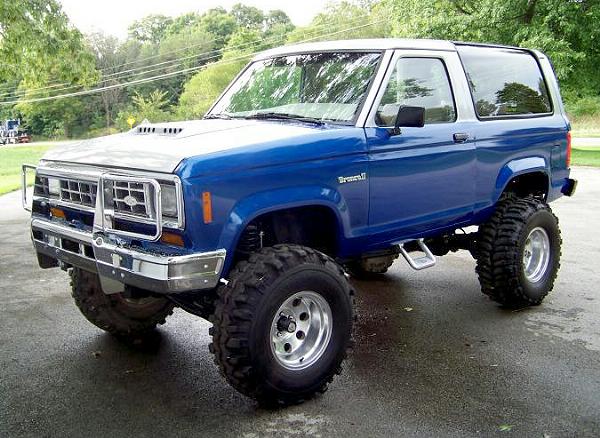

4-Inch Suspension Lift, 3-Inch Body Lift, and 33-Inch Tires (33x14x15 Rear)

35-Inch Tires

6-Inch Suspension Lift, 2-inch Body Lift, Cutout Fender Flares, and 35-Inch Tires

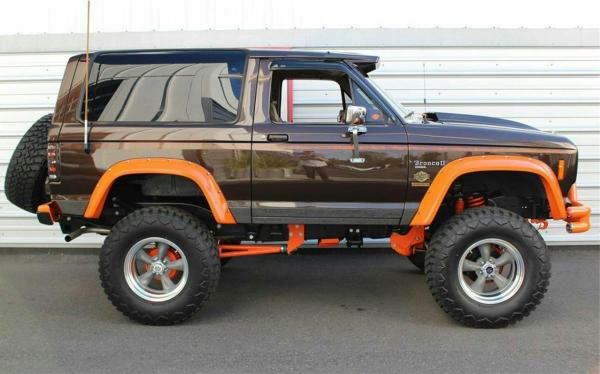

4-Inch Suspension Lift, 3-Inch Body Lift, Bushwacker Cut Out Fender Flares, 35-Inch Tires

Solid Axle Swap, 5-Inch Lift, Heavily Trimmed Fenders, and 35-Inch Tires

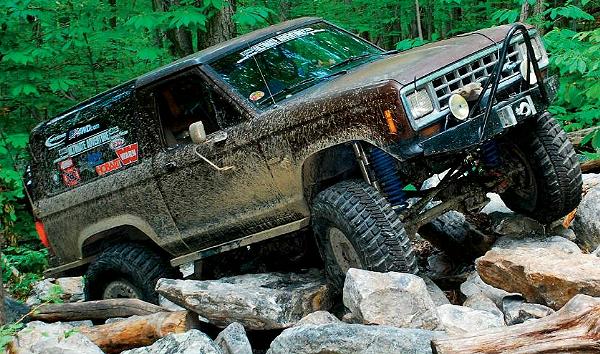

Solid Axle Swap, 7-Inch Lift, Trimmed Fenders, and 35-Inch Tires

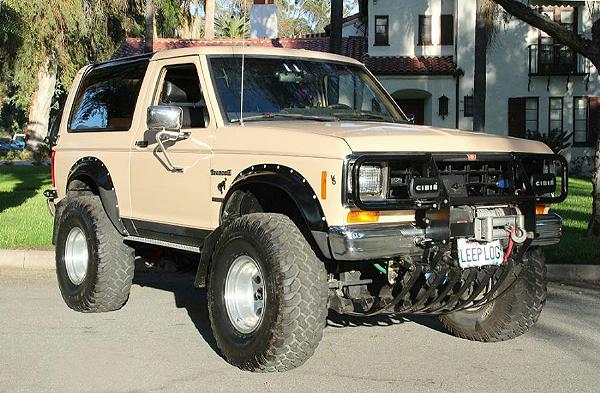

5.5-Inch Superlift Lift, Cutout Fender Flares, and 35-Inch Tires

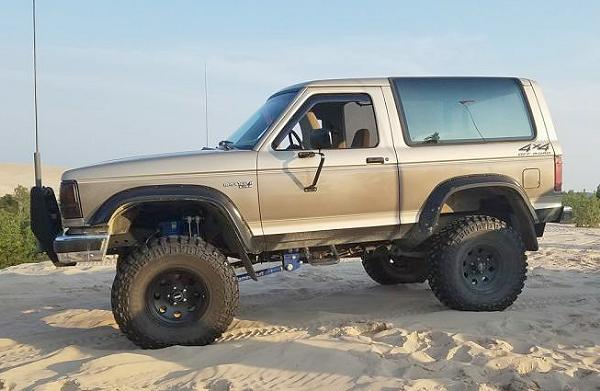

5.5-Inch James Duff Lift, 2-Inch Body Lift, Cutout Fender Flares, and 35-Inch Tires

3.5-Inch Suspension Lift, 2-Inch Body Lift, Cutout Fender Flares, and 35-Inch Tires

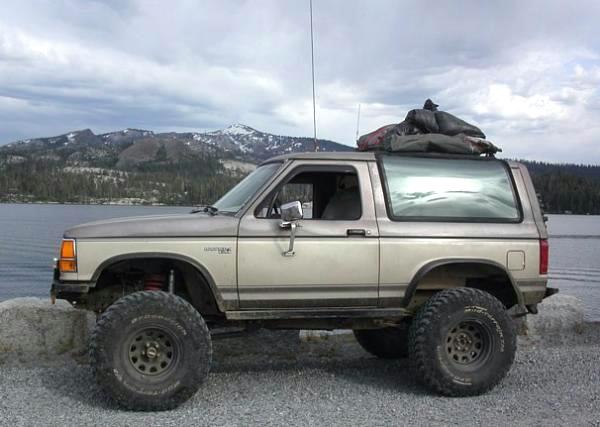

3-Inch Suspension Lift, 2-Inch Body Lift, Trimmed Fenders, Pacer Fender Flares, and 35-Inch Tires

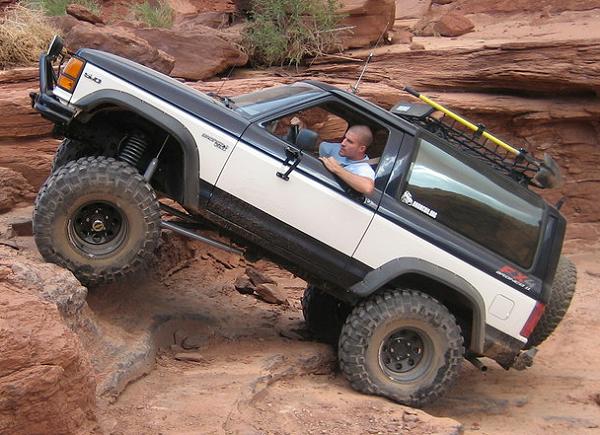

Solid Axle Swap, 6-Inch Suspension Lift, Cutout Fender Flares, and 35-Inch Tires

37-Inch Tires

Solid Axle Swap, 6-Inch Lift, 2-Inch Body Lift, Trimmed Fenders, 37-Inch Tires
