Introduction
Do you want or need to replace a light bulb in your Ford Bronco II but don’t know which bulb you need? This 1984-1990 Ford Bronco II Light Bulb Guide is here to help.
1984-1988 Ford Bronco II

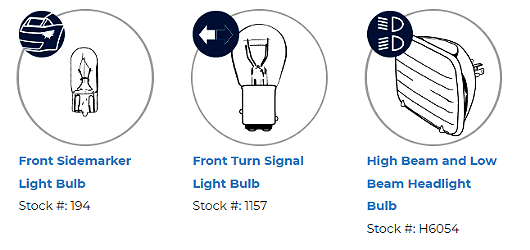

Front Lighting
Headlight: #H6054
Front Turn Signal: #1157
Front Side Marker Light: #194

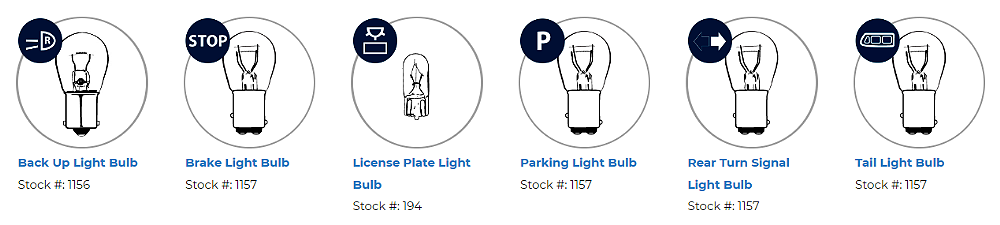

Rear Lighting
Taillight: #1157
Rear Turn Signal: #1157
Brake Light: #1157
Back Up Light: #1156
License Plate Light: #194

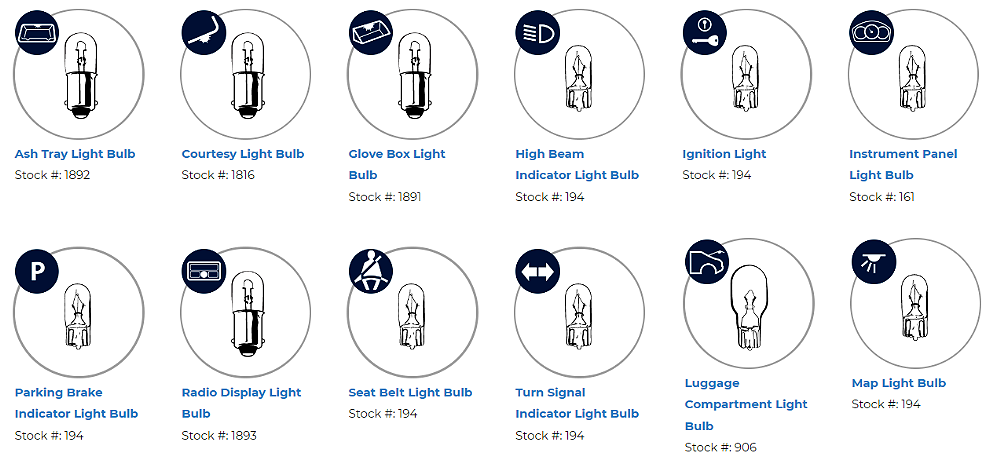

Interior Lighting
Dome Light: #194
Map Light: #194
Rear Compartment Light: #906
Glove Box Light: #1891
Ash Tray Light: #1892
Courtesy Light: #1816
Instrument Bulb Light: #161
High Beam Indicator Light: #194
Turn Signal Indicator Light: #194
Radio Display Light: #1893
Parking Brake Indicator: #194
Seat Belt Light: #194
1989-1990 Ford Bronco II

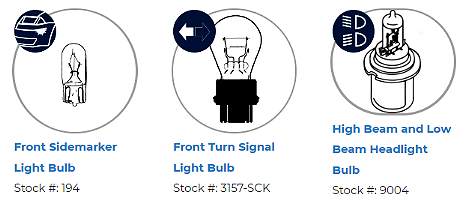

Front Lighting
Headlight: #9004
Front Turn Signal: #3157-SCK
Front Sidemarker: #194

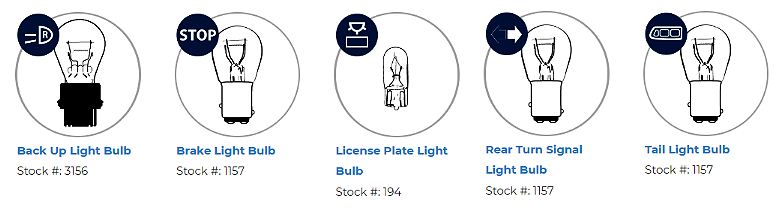

Rear Lighting
Taillight: #1157
Brake Light: #1157
Rear Turn Signal: #1157
Back Up Light: #3156
License Plate Light: #194
