Introduction
This 1989 Ford Bronco II owned by Josh (AKA MoabB2) from Sandy, Utah has always been one of my favorite Ford Bronco II builds. It’s definitely a nice clean well thought out build that functions as well as it looks.
Here’s an overview
- Eary Bronco Disc brake Dana 44 front axle installed, TRO steering, Yukon 4340 Chromoly axles, Yukon Superjoints, Yukon 4.88, ARB, Cage heavy duty track bar.
- Early Bronco Big Bearing 9-inch rear axle installed, Yukon 31 Spline Forged axles, Yukon 4.88 R&P, ARB, Drums.
- Manual BW1354 transfer case installed, replaced stock BW1350 for more travel in front yoke.
- Wheelbase stretched 1.5-inches in front.
- Front suspension: Cage Early Bronco 3.5-inch coils, Cage Tubular Radius Arms, Duff zinc plated coil towers, Cage nitrogen shocks.
- Rear suspension: Skyjacker 6-inch rear leaf springs, Cage nitrogen shocks, custom traction bars.
- Wheels and tires: 35×13.50×15 BFG Krawlers mounted on 15×10 Cragar Series 397 wheels.
- Custom brake lines and drivelines are being made right now. ARB compressor mounted and custom ARB dash switches underway.
Body
Frame Off Restoration
Buckingham Blue Pearl Metallic and Chawton White 2-Tone Paint
Custom tubed Front Clip And Radiator Support.
James Duff Polyurethane Body Mounts.
Bushwacker Cut-Out Fender Flares
Custom grill
Drivetrain
1997 5.0L V8 with GT-40p Heads (215 rwhp / 273 ft/lb)
4R70W, AOD-EW Transmission with Shift Kit & Kevlar Bands
OBD-II PCM and Diagnostic Port, SCT X3 custom Dyno Tune.
Custom Dual Exhaust with Flowmaster 40 Series Mufflers
Torque Monster Headers
Aluminum 4-Core Radiator
B&M Transmission Supercooler with Temp Gauge.
BW1354 Transfer Case, 34.4:1 Crawl Ratio
Early Bronco Dana 44 Front Axle with Disc Brakes, Chromoly Shafts, 4.88 Gears, Superjoints, ARB Air Locker Warn Hubs, and Cage Offroad Trac-Bar Mount
Early Bronco big bearing Ford 9-Inch Rear Axle with Drum Brakes, Yukon 31-Spline Shafts, 4.88 Gears and ARB Air Locker
Suspension
3.5-Inch Cage Offroad Early Bronco front coil springs
Cage Offroad Early Bronco extended radius arms & mounts
(4) Cage Offroad shocks
James Duff Zinc Plated Coil Buckets
Cage Offroad Shock Mounts
Skyjacker Bronco II 4-Inch Leaf Springs
Wheels & Tires
35×13.50×15 BFG Krawler TA on 15X10 Cragar steel wheels.
35×12.50×15 BFG Mud Terrain KO spare tire.
(5) Cragar 15×10 5×5.5 Series 397
Body Protection / Armor
James Duff Front & Rear Receiver Bumpers
Other
Hella 500 Off-Road Lights, Xenon Driving Lights, Rear Off-Road Light
Panasonic CD Player with JBL Speakers
Midland CB Radio
Yakima Loadwarrior Basket with Axe/Shovel Brackets.
Hi-Lift Jack
Custom FX4 Decals

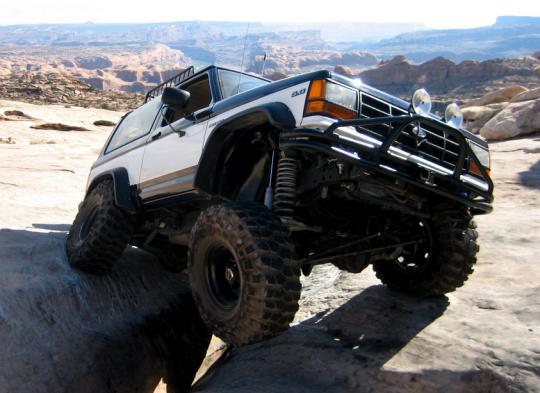

Photos
Click the photos to enlarge.
