Bronco II Facts



Engine 1984 - 1985  -  2.8 Liter V-6
Displacement 171 Cubic Inches
Induction 2bbl Carburetor
Horsepower 115 @ 4600rpm
Torque 150 @ 2600rpm
Firing Order 1-4-2-5-3-6
Distributor Rotation Clockwise
Engine 1986-1990  -  2.9 Liter V-6
Displacement 177 Cubic Inches
Induction Electronic Fuel Injection ('86-'87 was bank injected - '88-90 was sequential)
Horsepower 140hp @ 4600rpm
Torque 170hp @ 2600rpm
Firing Order 1-4-2-5-3-6
Distributor Rotation Clockwise
Transmissions  -  Automatic
1984-1985 C5 (Code W)
1984-1990 (11/84 and newer) A4LD (Code T)
Transmission  -  Manual
1984 Toyo Koygo TK4  (Code X)  4-Speed
1985-1987 Toyo Koygo TK5  (Code 5)  5-Speed
1985-1987 Mitsubishi FM145  (Code D)  5-Speed
1988-1990 Mitsubishi FM146  (Code D)  5-Speed
1988-1990 Mazda M5OD (Code M)  5-Speed
Transfer Cases
1984-1990 Manual BW1350
1986-1989 Electric  BW1350
1990 Electric BW1354
Axles
Front 4WD Axle 1984 - 10/1990 Dana 28 TTB
Front 4WD Axle 11/1990 - Up Dana 35 TTB
Rear Axle Ford 7.5-Inch
Gear Ratio's Available 3.45, 3.73, 4.10
Exterior Dimensions
Length 161.8"
Width 68"
Height 70.4"
Wheelbase 94"
Curb Weight 3,385lbs
Interior Dimensions
Front Head Room 39.5"
Front Hip Room 52.7"
Front Shoulder Room 54.6"
Front Leg Room 43.9"
Rear Head Room 38.9"
Rear Hip Room 42.3"
Rear Shoulder Room 55.9"
Rear Leg Room 35"
Maximum Cargo Capacity 57 Cubic Feet
Luggage Capacity 23.8 Cubic Feet
Maximum Seating 4
Miscellaneous
Fuel Capacity 23 Gallons

Miscellaneous Facts:

1983.5 - Bronco II had an optional pop out style rear side window.

1984-1985 Bronco II's have metal side window trim and are urethaned (glued) in place. Late 1985-1990 models have a rubber weatherstrip style trim and are bolted in.

1984-1985 Bronco II's had optional opening glass on the rear hatch. None of these had the rear the window wiper or defroster.

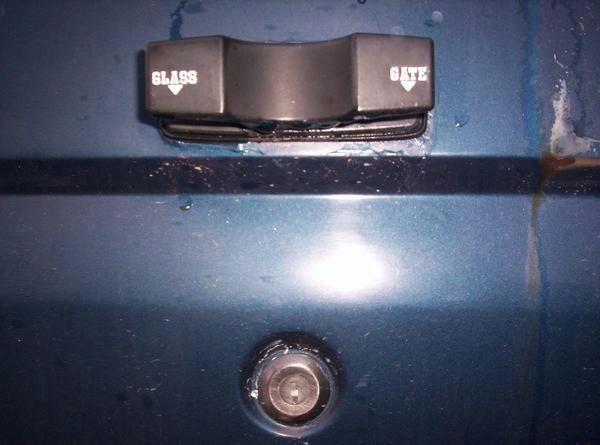

Photos of opening glass in rear hatch - Photos courtesy of 'IamMonsterMan'

1984-1990 - All Bronco II's had an optional swing out spare tire carrier. The standard version mounted the spare inside the rear cargo area. The swing out tire carriers on 1984-1985 models were aluminum.

1984-1985 Bronco II's had optional rear reclining buckets instead of a bench. Look real close at early XLS models or any Bronco II with a factory knob type sunroof.

(Rear Reclining Buckets)

1986 - A 2.3-liter turbodiesel was available, but rarely ordered.

1986 - Was the first year for a 2WD Bronco II.

1986 - The electronic (shift-on-the-fly) transfer case became available in late 1986 and were an option until the end of the Bronco II's production. The buttons to activate the switch were in a small overhead console.

1986-1987 were the only years to have EGR systems.

1986-1987 were the only years to have the larger 58mm throttle body.

1986-1987 were the only years to have a stock H pipe making it easier to add true dual exhaust.

1987 Bronco II's got rear anti-lock brakes.

1990 Bronco II's were listed as having an optional 4.0 Liter V-6, but none have ever been seen.

There was a sport package that had a front air dam and side skirts.

Rare Bronco II Conversions:

There were (2) rare Bronco II conversions available.

Sherrod Bronco II convertible - Click HERE.

Bronco II Plus - Click HERE.

Strange Fact:

Almost all Ford Bronco II's had 4WD transfer cases. Even the 2WD models. Why? Who knows. The BW1359 transfer case in the 2WD Bronco II's was basically a 'dummy' case and had a permanent seal where the front driveshaft would go. This means that the two-wheel-drive Bronco II's had 4WD transmissions.  It's strange considering the Ranger and Bronco II drivetrain was essentially the same. Why didn't Bronco II's have a Ranger 2WD transmission with a longer drivershaft? In 1990, the Bronco II's final year of production, the 2WD Bronco II started showing up with a 2WD transmission. It used an adapters that slid on to the output shaft of a 2WD transmission and had a four bolt flange for the bolt on driveshaft.

(Photo of flange adapter slid on to the output shaft of a Bronco II 2WD transmission)

Wanted: Bronco II sales brochures (photos, scans, .pdf's), photos of opening rear side windows, photos of factory sunroofs and of any rare options.  Also fee free to Contact us if you have any information to share.
